VCSBC nano Z-RH-2 0010

VC goes 3D - Price stays 2D!

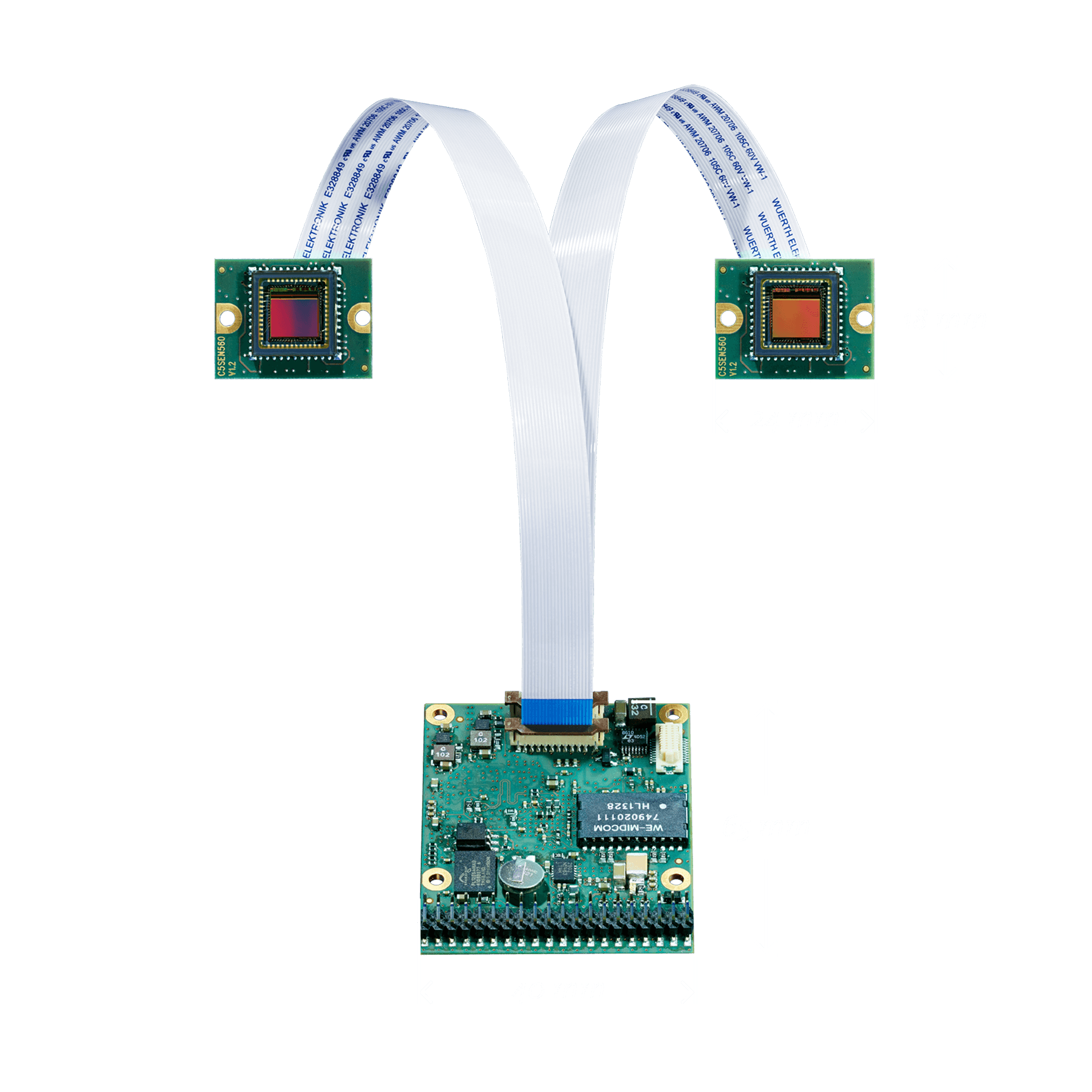

nano board
With the free programmable VCSBC nano Z embedded system you got a wide range of opportunities!
Sensor
1/4" CMOS, also available as color version (Bayer filter)
Dig. I/Os
12 free programmable inputs/outputs
CPU
ARM, 2 x 866 MHz

Fast facts

  • 1/4" CMOS Sensor, e2V
  • Resolution: 752 x 480 Pixel, WVGA
  • Frame rate: 120 fps
  • High-Speed Shutter: 34 µs + steps of 34 µs.
  • Low-Speed Shutter: up to 2 s adjustable integration time
  • Dual-Core ARM with 2 x 866 MHz and integrated FPGA

Also available

  • as color version "C" (Bayer filter) on request
  • with sensor on-board
  • with external sensor board "RH", cable length 80-200 mm
  • as stereo Smart Camera with 2 external sensor boards "RH-2"

  • available as from Q2/2016
512
MD DDR-SDRAM
120
FRAMES PER SECOND
752 x 480
px RESOLUTION
866
MHz DUAL-CORE ARM
12
PROGRAMMABLE I/Os
40 x 50
in mm DIMENSIONS

Specifications

Sensor:
1/4" CMOS from e2v, available as color version (Bayer filter)
Resolution:
752(H) x 480(V) active pixel, WVGA
Pixel size:
6.0(H) µm x 6.0(V) µm
Shutter:
High-speed: 34 µs + in steps of 34 µs. Low-speed: up to 2 s adjustable integration time
Integration:
Global shutter
Frame rate:
120 fps
Acqusition:
Program-controlled or external high speed trigger, full-frame & partial scanning (ROI), jitterfree acquisition
Processor:
Dual-core ARM Cortex-A9 with 2 x 866 MHz and integrated FPGA
RAM:
512 MB DDR-SDRAM
Flash EPROM:
16 GB flash memory (nonvolatile)
Dig. I/Os:
12 programmable I/Os
Trigger I/Os:
1 Trigger input (opto-decoupled) and 1 flash trigger output (open collector)
Interfaces:
Ethernet 1Gbit, serial RS232, I²C
Power Supply:
10-30 V DC
Power consumption:
<3 W
Dimensions:
approx. 40 mm x 50 mm
Design type:
2 remote sensors
