TC5M-03-170I Lensagon

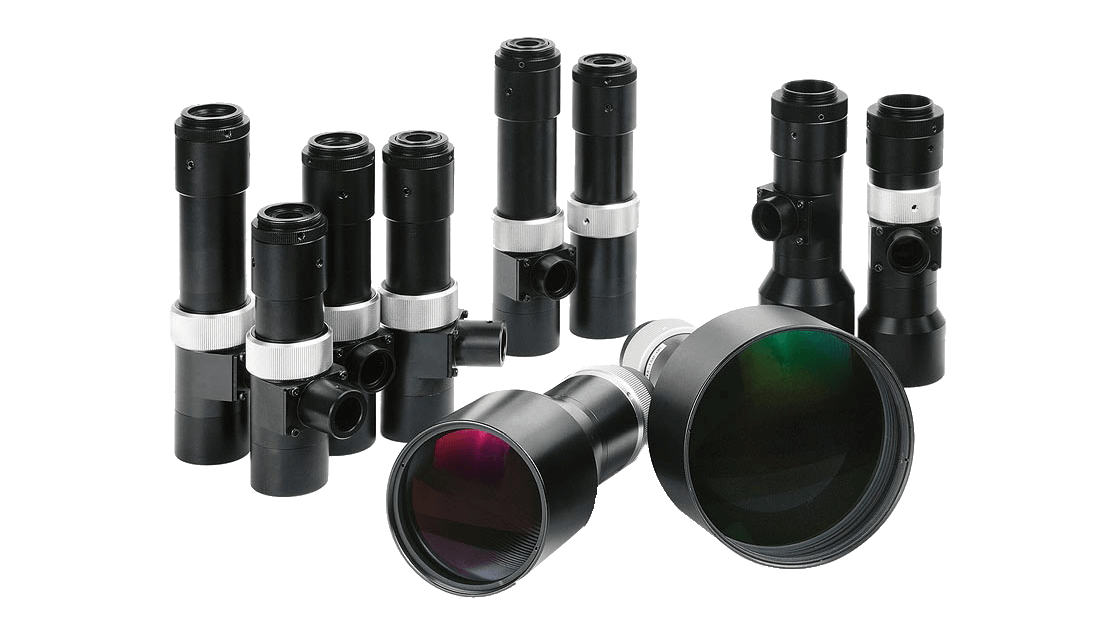

TC5M Series

Fast Facts

  • 5 Megapixel C-Mount lens
  • for 2/3" sensor
  • Magnification: 0.3
  • Aperture: F8

Specifications

Magnification:
0.3
Mount:
C-Mount
Opening:
8
Working Distance (WD):
170 mm
Depth of Field (DOF):
3.55 µm
Resolution (Object Side):
17.94 µm
Numerical Aperture (NA):
0.0187
Image Format (max.):
2/3"
Megapixel:
5
Field of View (FOV):
28.2 mm x 23.7 mm @ 5M CCD
Type:
Object Side
Telecentricity:
0.03 °
Optical Distortion (max.):
0.01 %
Special Feature:
Standard
Technical Drawing TC5M-03-170I - pdf - 77.52 KB
