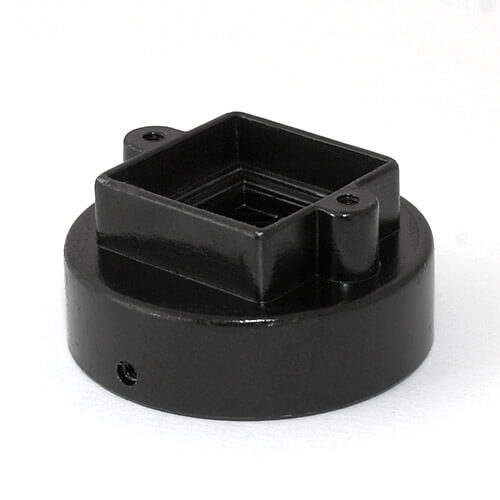

Ring outside dimension: diameter 30 mm, height 14.5 mm. Ring inside dimension: diameter 25 mm. Square seat outside dimension 18 mm x 18 mm. Square seat inside dimension: 10 mm x 9.5 mm. Mounting hole distance 20 mm, metal with side hole on the ring. Material: Aluminium, Height: 6 mm, Diameter: 20 mm, Color: Black

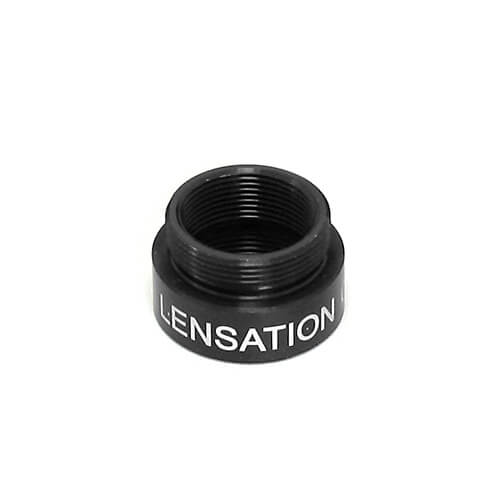

M12 extension ring 5 mm, anodized. Material: Aluminium, Color: Black, Weight: 0.8 g

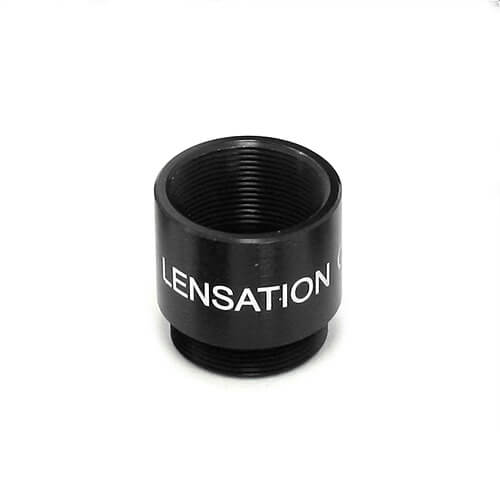

M12 extension ring 10 mm, anodized. Material: Aluminium, Color: Black, Weight: 1.4 g

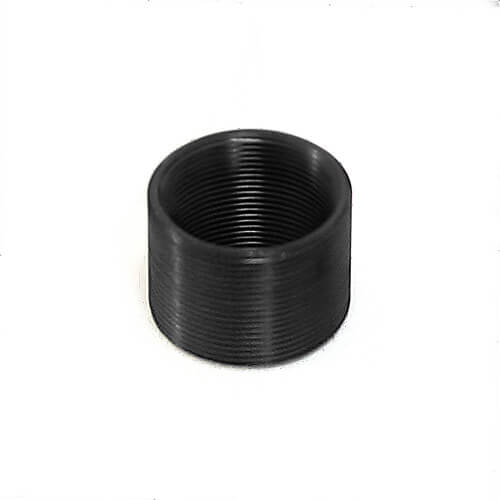

Adapter for using M12 x 0.5 lenses in M14 x 0.5 mounts. Material: Aluminium, Color: Black.

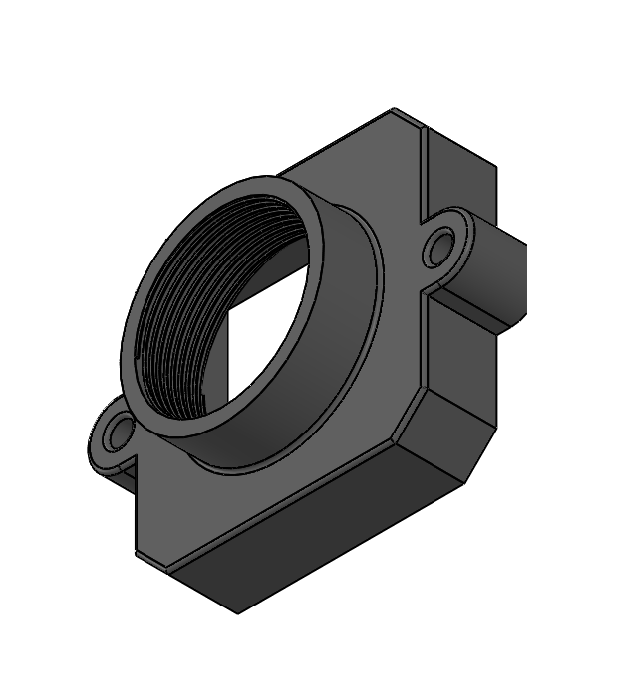

L/W/H: 19.8 mm x 19.8 mm x 8.5 mm, mounting hole distance 22 mm, no side hole for lock screw. Material: Plastic, Color: Black.

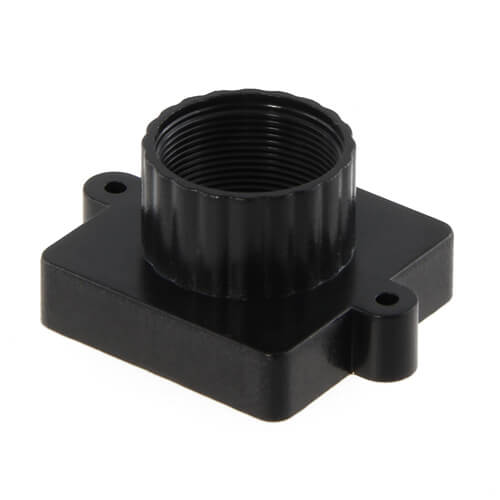

l x w x h: 20.3 mm x 20.3 mm x 13 mm, mounting hole distance 22 mm, no side hole for lock screw, 4 mm chamfer at the corners. Inner height 4.95 mm. Material: Plastic, Color: black.

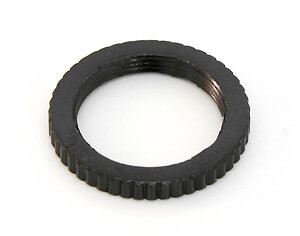

Knurled, black, anodized aluminium lock ring for s-mount lenses,
d = 15.8 mm, h = 2 mm, M12x0.5 female thread. Color: Black,
Weight: 0.4 g.

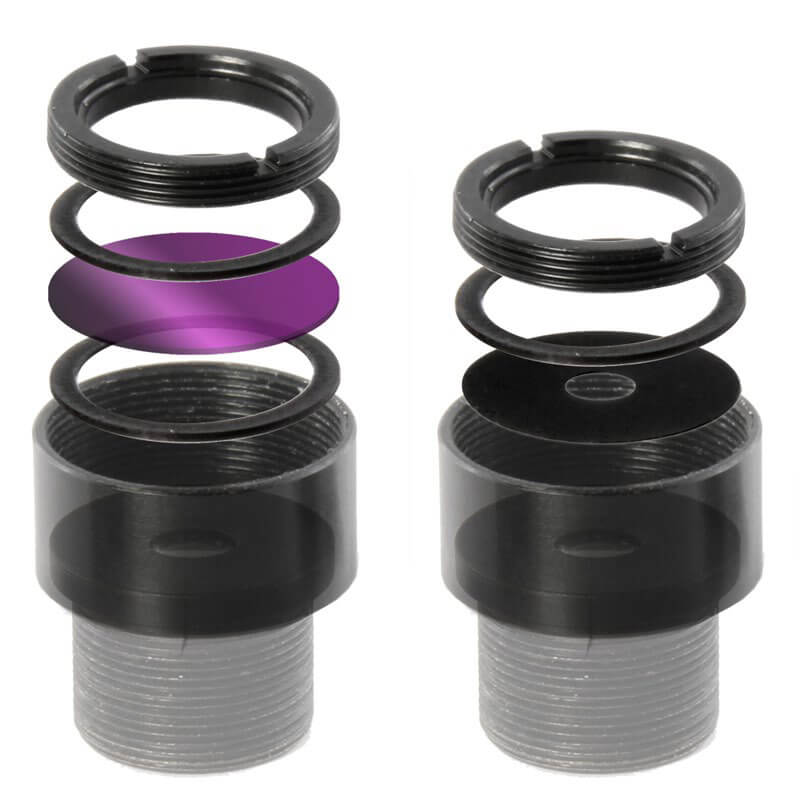

Filter adapter for M12 lenses with head dia. 14 mm and height 8 mm.
Suitable filter size dia. 14 mm thickness 0.8 mm.
