OEM Smart Kameras
ARM/LINUX

VC Smart Cameras with ARM technology and VC LINUX operating system

  • Basis: ZYNQ® module:
    Dual Core ARM Cortex™-A9 (free programmable)
  • 2 x 866 MHz
  • integrated FPGA from Xilinx®
  • VC Linux OS
  • nano housing with free programmable status LEDs
  • IP67 housing (VC Pro Z series)
  • stereo vision for 3D applications with external sensor boards
  • several CMOS sensors and resolutions
  • FPGA can be programmed for considerable speed boost
Flyer - Performance cubed. - pdf - 1.07 MB
Download
More Less

Housed cameras

Filter products Filter products
result results

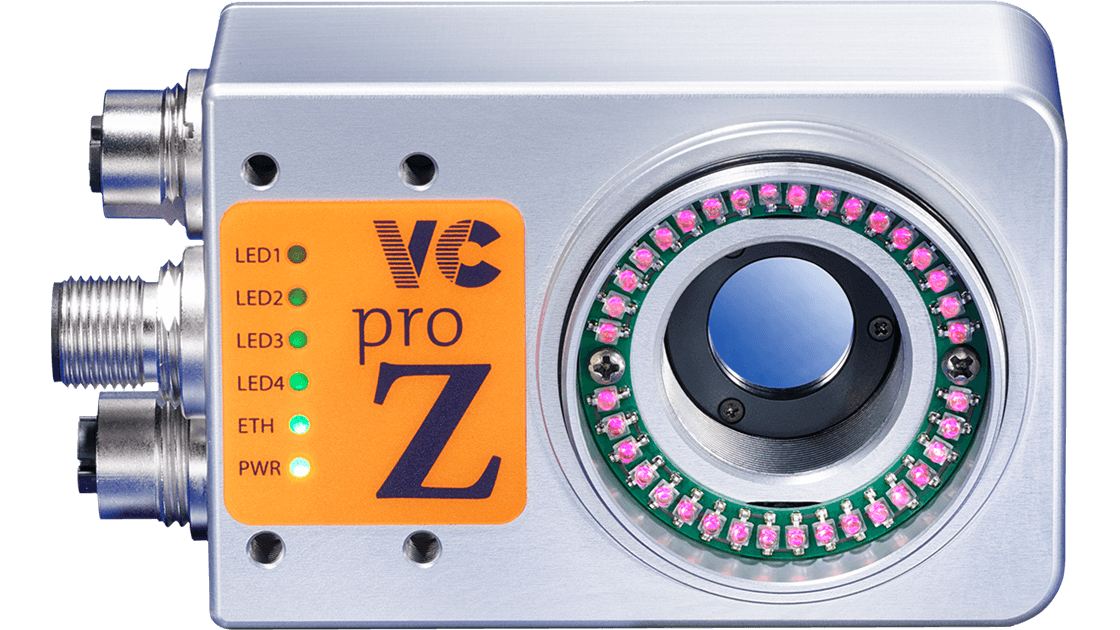

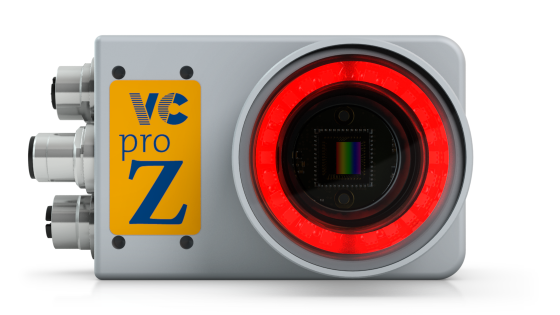

VC pro Z VC pro Z
The VC pro Z series provides the optimal protection for all applications in rough environment: Housing and M12 connectors conform to IP67 protection class. Additionally, single components are selectable: The embedded system can be delivered with integrated lens and/or high power LED lighting, if requested.
Basis for the VC pro Z cameras is the board camera version VCSBC nano Z. Like all other Z models, users have the service option to boost the already enormous performance by a multiple.
VC pro Z
more less
The VC pro Z series provides the optimal protection for all applications in rough environment: Housing and M12 connectors conform to IP67 protection class. Additionally, single components are selectable: The embedded system can be delivered with integrated lens and/or high power LED lighting, if requested.
Basis for the VC pro Z cameras is the board camera version VCSBC nano Z. Like all other Z models, users have the service option to boost the already enormous performance by a multiple.
less
VCpro Z 0010 VCpro Z 0010
1/4" CMOS sensor, e2v752 x 480 pixel, WVGA120 fpsavailable as color version
Show details
VCpro Z 0011 VCpro Z 0011
1/1.8" CMOS sensor, e2v1280 x 1024 pixel, SXGA60 fpsavailable as color version
Show details
VCpro Z 0015 VCpro Z 0015
1/1.8" CMOS sensor, e2v1600 x 1200 pixel, UXGA50 fpsavailable as color version
Show details
VCpro Z 0022 VCpro Z 0022
1/1.8" CMOS sensor, SONY2048 x 1536 pixel80 fpsavailable as color version
Show details
VCpro Z 0010
1/4" CMOS sensor, e2v752 x 480 pixel, WVGA120 fpsavailable as color version
VCpro Z 0011
1/1.8" CMOS sensor, e2v1280 x 1024 pixel, SXGA60 fpsavailable as color version
VCpro Z 0015
1/1.8" CMOS sensor, e2v1600 x 1200 pixel, UXGA50 fpsavailable as color version
VCpro Z 0022
1/1.8" CMOS sensor, SONY2048 x 1536 pixel80 fpsavailable as color version

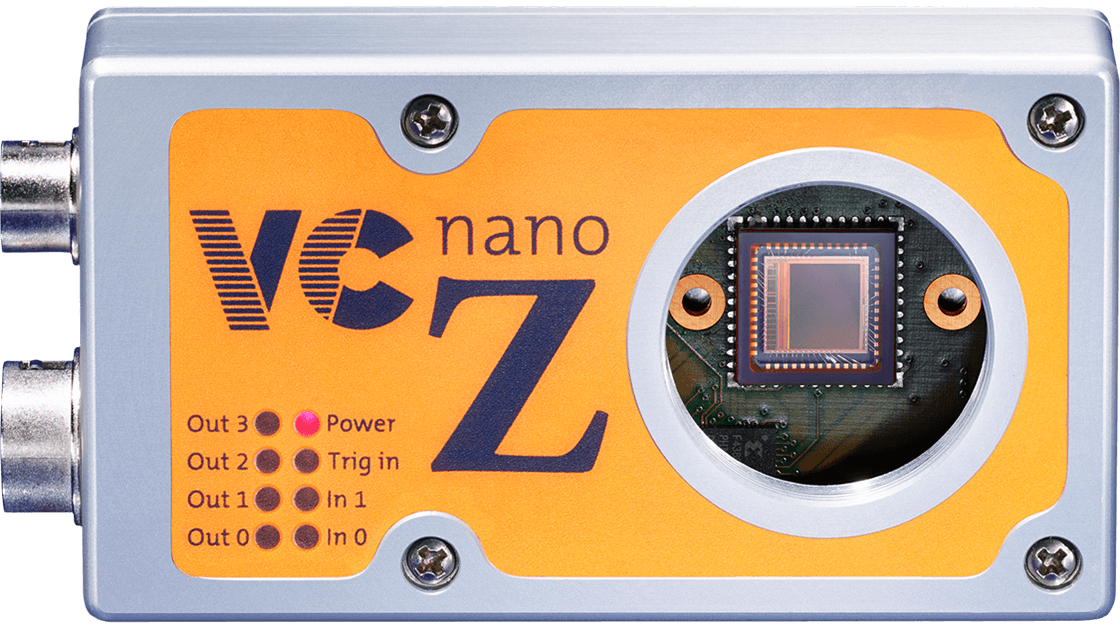

VC nano Z VC nano Z

The new VC nano Z Smart Cameras come with the well-proven nano housing, thus, they provide the same I/Os. With their tiny size and field-tested connections they easily can be integrated into existing machines.


The inside is completely new designed and based on the VCSBC nano Z. And like all Z models, 5 different CMOS sensors from CMOSIS, Aptina and e2v as well as several resolutions can be selected.


To maximize the hardware performance, the FPGA can be programmed additionally. This can increase the speed by ten times, in comparison to not using the FPGA. Several FPGA packs will be available soon.

VC nano Z
more less

The new VC nano Z Smart Cameras come with the well-proven nano housing, thus, they provide the same I/Os. With their tiny size and field-tested connections they easily can be integrated into existing machines.


The inside is completely new designed and based on the VCSBC nano Z. And like all Z models, 5 different CMOS sensors from CMOSIS, Aptina and e2v as well as several resolutions can be selected.


To maximize the hardware performance, the FPGA can be programmed additionally. This can increase the speed by ten times, in comparison to not using the FPGA. Several FPGA packs will be available soon.

less
VCnano Z 0010 VCnano Z 0010
1/4" CMOS sensor, e2v752 x 480 pixel, WVGA120 fpsavailable as color version
Show details
VCnano Z 0011 VCnano Z 0011
1/1.8" CMOS sensor, e2v1280 x 1024 pixel, WVGA63 fpsavailable as color version
Show details
VCnano Z 0015 VCnano Z 0015
1/1.8" CMOS sensor, e2v1600 x 1200 pixel, UXGA63 fpsavailable as color version
Show details
VCnano Z 0022 VCnano Z 0022
1/1.8" CMOS sensor, SONY2048 x 1536 pixel80 fpsavailable as color version
Show details
VCnano Z 0010
1/4" CMOS sensor, e2v752 x 480 pixel, WVGA120 fpsavailable as color version
VCnano Z 0011
1/1.8" CMOS sensor, e2v1280 x 1024 pixel, WVGA63 fpsavailable as color version
VCnano Z 0015
1/1.8" CMOS sensor, e2v1600 x 1200 pixel, UXGA63 fpsavailable as color version
VCnano Z 0022
1/1.8" CMOS sensor, SONY2048 x 1536 pixel80 fpsavailable as color version
