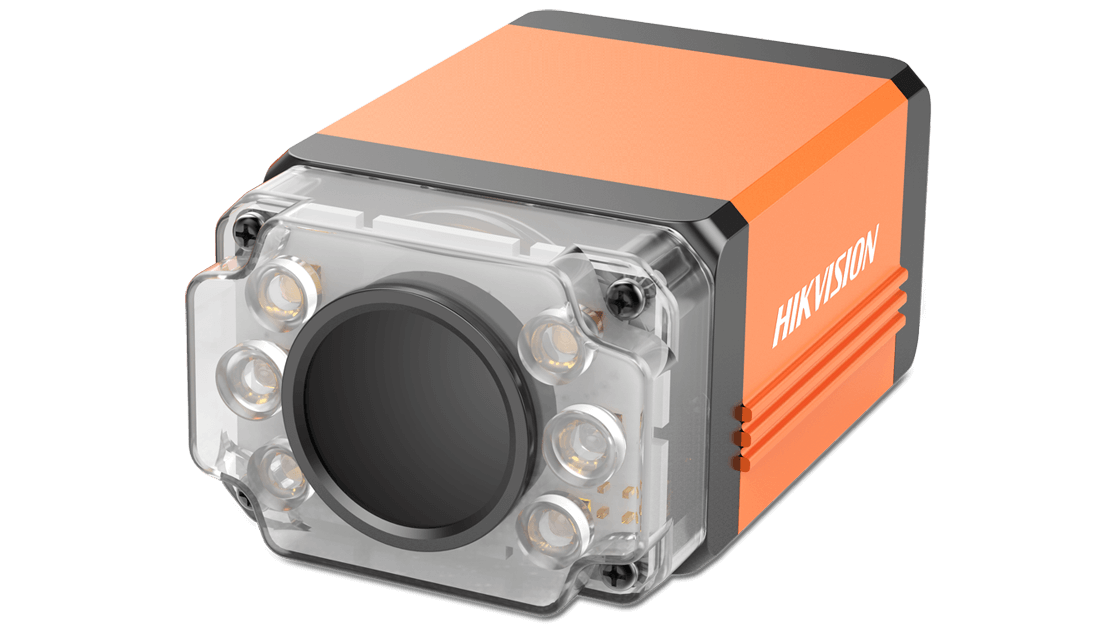

MV-SM412-00GM

Deep learning barcode scanner

Specifications

Sensor:
Onsemi Phyton 1300 1/2" Global Shutter CMOS
Resolution:
1280 x 1024 px
Pixel Size:
4.8 µm x 4.8 µm
Frame Rate:
60 fps
Shutter Mode:
Global Shutter, auto exposure, manual exposure, one-key exposure
Network:
Gigabit Ethernet
General Purpose I/O:
12 pin IO port, including 3 GPI inputs, 3 GPO outputs, 1 serial input and 1 serial output
Output Format:
Mono 8
Power Supply:
4W @24VDC (without internal light)5.7W @24 VDC (with internal light)
Temperature:
Working Temperature 0~50°C, Storage Temperature -30~70°C
Dimensions:
81.8 mm x 50.5 mm x 36.5 mm
Weight:
Approx. 90 g
Lens Interface:
C-Mount, M12-Mount
Software:
Smart MVS
Operating System:
Movidius VPU Platform
Compliance:
GigE Vision V1.2
Compatibility:
contains external light source interface but without LED light source and lens cover
Certification:
CE, FCC, RoHS
Mono or Color:
Mono
