MV-CA/CE series

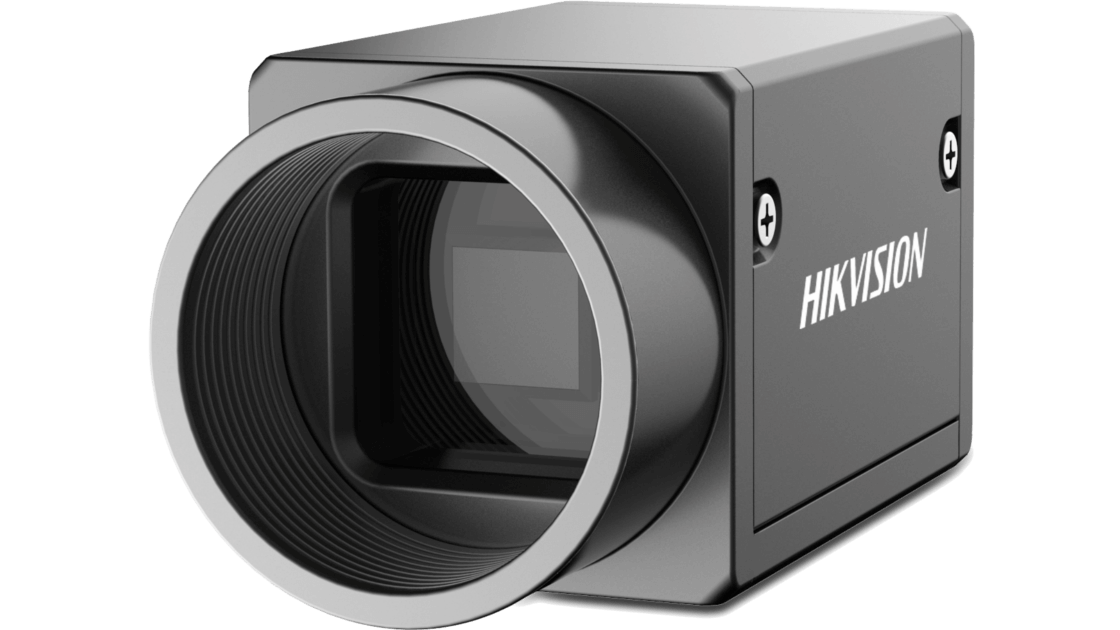

Hikvision GigE Areascan Cameras

Overall features

  • Gigabit Ethernet interface
  • 128MB buffer for burst- and re-transmitting
  • Auto exposure, LUT and Gamma correction


  • Synchronizable with hard- and soft-trigger
  • Different exposure and tirgger modes
  • GigE Vision V1.2 compliant
result results
MV_CA/CE MV_CA/CE
MV_CA/CE
less
MVGL-AC245-024GGM MVGL-AC245-024GGM
Sensor: IMX264 2/3" CMOSResolution: 2448 x 2048 pxFrame rate: 23.3 fpsPixel size: 3.45 µm x 3.45 µmMono
Show details
MVGL-AC205-038GGM MVGL-AC205-038GGM
Sensor: IMX265 1/1.8" CMOSResolution: 2048 1536 pxFrame rate: 37.5 fpsPixel size: 3.45 µm x 3.45 µmMono
Show details
MV-CA003-20GM/C MV-CA003-20GM/C
Sensor: PHYTON300 1/4" CMOSResolution: 672 x 512 pxFrame rate: 300 fpsPixelsize: 4.8 µm x 4.8 µmMono/Color
Show details
MV-CE003-20GM/C MV-CE003-20GM/C
Sensor: PHYTON480 1/3.6" CMOSResolution: 672 x 512 pxFrame rate: 173 fpsPixelsize: 4.8 µm x 4.8 µmMono/Color
Show details
MV-CA003-50GM/C MV-CA003-50GM/C
Sensor: PHYTON300 1/3" CMOSResolution: 640 x 480 pxFrame rate: 200 fpsPixel size: 7.4 µm x 7.4 µmMono/Color
Show details
MV-CA004-10GM/C MV-CA004-10GM/C
Sensor: IMX287 1/2.9" CMOSResolution: 720 x 540 pxFrame rate: 312,9 fpsPixelsize: 6.9 µm x 6.9 µmMono/Color
Show details
MV-CA005-20GM/C MV-CA005-20GM/C
Sensorsize: PHYTON480 1/3.6" CMOSResolution: 808 x 606 pxFrame rate: 116 fpsPixelsize: 4.8 µm x 4.8 µmMono/Color
Show details
MV-CA013-20GM/C MV-CA013-20GM/C
Sensor: PHYTON1300 1/2" CMOSResolution: 1280 x 1024 pxFrame rate: 75 fpsPixel size: 4.8 µm x 4.8 µmMono/Color
Show details
MV-CA013-20GN MV-CA013-20GN
Sensor: PHYTON1300 1/2" CMOSResolution: 1280 x 1024 pxFrame rate: 90 fpsPixel size: 4.8 µm x 4.8 µmNear-Infrared
Show details
MV-CE013-50GM/C MV-CE013-50GM/C
Sensor: RJ33 1/3" CCDResolution: 1280 x 960 pxFrame rate: 30 fpsPixel size: 3.75 µm x 3.75 µmMono/Color
Show details
MV-CA013-70GM MV-CA013-70GM
Sensor: E2V 1" CMOSResolution: 1280 x 1024 pxFrame rate: 49 fpsPixel size: 10 µm x 10 µmMono
Show details
MV-CA016-10GM/C MV-CA016-10GM/C
Sensor: IMX273 1/2.9" CMOSResolution: 1440 x 1080 pxFrame rate: 78.2 fpsPixel size: 3.45 µm x 3.45 µmMono/Color
Show details
MV-CA020-20GM/C MV-CA020-20GM/C
Sensor: PHYTON2000 2/3" CMOSResolution: 1920 x 1200 pxFrame rate: 51 fpsPixel size: 4.8 µm x 4.8 µmMono/Color
Show details
MV-CA023-10GM/C MV-CA023-10GM/C
Sensor: IMX249 1/1.2" CMOSResolution: 1920 x 1200 pxFrame rate: 30 fpsPixel size: 5.86 µm x 5.86 µmMono/Color
Show details
MV-CA032-10GM/C MV-CA032-10GM/C
Sensor: IMX265 1/1.8" CMOSResolution: 2048 1536 pxFrame rate: 37.5 fpsPixel size: 3.45 µm x 3.45 µmMono/Color
Show details
MV-CA050-10GM/C MV-CA050-10GM/C
Sensor: IMX264 2/3" CMOSResolution: 2448 x 2048 pxFrame rate: 23.5 fpsPixel size: 3.45 µm x 3.45 µmMono/Color
Show details
MV-CA050-20GM/C MV-CA050-20GM/C
Sensor: PHYTON5000 1" CMOSResolution: 2952 x 2048 pxFrame Rate: 15 fpsPixel size: 4.8 µm x 4.8 µmMono/Color
Show details
MV-CA050-20GN MV-CA050-20GN
Sensor: PHYTON5000 1" CMOSResolution: 2952 x 2048 pxFrame Rate: 22 fpsPixel size: 4.8 µm x 4.8 µmNear-Infrared
Show details
MV-CE050-30GM MV-CE050-30GM
Sensor: MT9P031 1/2.5" CMOSResolution: 2592 x 1944 pxFrame rate: 14 fpsPixel size: 2.2 µm x 2.2 µmMono
Show details
MV-CE050-31GM/C MV-CE050-31GM/C
Sensor: MT9P031 1/2.5" CMOSResolution: 2592 x 1944 pxFrame rate: 24 fpsPixel size: 2.2 µm x 2.2 µmMono/Color
Show details
MV-CA060-10GM/C MV-CA060-10GM/C
Sensor: IMX178 1/1.8" CMOSResolution: 3072 x 2048 pxFrame Rate: 17 fpsPixel size: 2.4 µm x 2.4 µmMono/Color
Show details
MV-CA060-11GM MV-CA060-11GM
Sensor: IMX178 1/1.8" CMOSResolution: 3072 x 2048 pxFrame Rate: 18 fps / 9 fpsPixel size: 2.4 µm x 2.4 µmMono
Show details
MV-CE100-30GM/C MV-CE100-30GM/C
Sensor: MT9J003 1/2.3" CMOSResolution: 3840 × 2748 pxFrame rate: 7 fpsPixel size: 1.67 µm x 1.67 µmMono/Color
Show details
MV-CE100-31GM MV-CE100-31GM
Sensor: MT9J003 1/2.3" CMOSResolution: 3840 × 2748 pxFrame rate: 11 fpsPixel size: 1.67 µm x 1.67 µmMono
Show details
MV-CE120-10GM/C MV-CE120-10GM/C
Sensor: IMX226 1/1.7" CMOSResolution: 4024 x 3036 pxFrame rate: 9.6 fpsPixel size: 1.85 µm x 1.85 µmMono/Color
Show details
MV-CE200-10GM/C MV-CE200-10GM/C
Sensor: IMX183 1" CMOSResolution: 5472 x 3648 pxFrame rate: 6 fpsPixel size: 2.4 µm x 2.4 µmMono/Color
Show details
MVGL-AC245-024GGM
Sensor: IMX264 2/3" CMOSResolution: 2448 x 2048 pxFrame rate: 23.3 fpsPixel size: 3.45 µm x 3.45 µmMono
MVGL-AC205-038GGM
Sensor: IMX265 1/1.8" CMOSResolution: 2048 1536 pxFrame rate: 37.5 fpsPixel size: 3.45 µm x 3.45 µmMono
MV-CA003-20GM/C
Sensor: PHYTON300 1/4" CMOSResolution: 672 x 512 pxFrame rate: 300 fpsPixelsize: 4.8 µm x 4.8 µmMono/Color
MV-CE003-20GM/C
Sensor: PHYTON480 1/3.6" CMOSResolution: 672 x 512 pxFrame rate: 173 fpsPixelsize: 4.8 µm x 4.8 µmMono/Color
MV-CA003-50GM/C
Sensor: PHYTON300 1/3" CMOSResolution: 640 x 480 pxFrame rate: 200 fpsPixel size: 7.4 µm x 7.4 µmMono/Color
MV-CA004-10GM/C
Sensor: IMX287 1/2.9" CMOSResolution: 720 x 540 pxFrame rate: 312,9 fpsPixelsize: 6.9 µm x 6.9 µmMono/Color
MV-CA005-20GM/C
Sensorsize: PHYTON480 1/3.6" CMOSResolution: 808 x 606 pxFrame rate: 116 fpsPixelsize: 4.8 µm x 4.8 µmMono/Color
MV-CA013-20GM/C
Sensor: PHYTON1300 1/2" CMOSResolution: 1280 x 1024 pxFrame rate: 75 fpsPixel size: 4.8 µm x 4.8 µmMono/Color
MV-CA013-20GN
Sensor: PHYTON1300 1/2" CMOSResolution: 1280 x 1024 pxFrame rate: 90 fpsPixel size: 4.8 µm x 4.8 µmNear-Infrared
MV-CE013-50GM/C
Sensor: RJ33 1/3" CCDResolution: 1280 x 960 pxFrame rate: 30 fpsPixel size: 3.75 µm x 3.75 µmMono/Color
MV-CA013-70GM
Sensor: E2V 1" CMOSResolution: 1280 x 1024 pxFrame rate: 49 fpsPixel size: 10 µm x 10 µmMono
MV-CA016-10GM/C
Sensor: IMX273 1/2.9" CMOSResolution: 1440 x 1080 pxFrame rate: 78.2 fpsPixel size: 3.45 µm x 3.45 µmMono/Color
MV-CA020-20GM/C
Sensor: PHYTON2000 2/3" CMOSResolution: 1920 x 1200 pxFrame rate: 51 fpsPixel size: 4.8 µm x 4.8 µmMono/Color
MV-CA023-10GM/C
Sensor: IMX249 1/1.2" CMOSResolution: 1920 x 1200 pxFrame rate: 30 fpsPixel size: 5.86 µm x 5.86 µmMono/Color
MV-CA032-10GM/C
Sensor: IMX265 1/1.8" CMOSResolution: 2048 1536 pxFrame rate: 37.5 fpsPixel size: 3.45 µm x 3.45 µmMono/Color
MV-CA050-10GM/C
Sensor: IMX264 2/3" CMOSResolution: 2448 x 2048 pxFrame rate: 23.5 fpsPixel size: 3.45 µm x 3.45 µmMono/Color
MV-CA050-20GM/C
Sensor: PHYTON5000 1" CMOSResolution: 2952 x 2048 pxFrame Rate: 15 fpsPixel size: 4.8 µm x 4.8 µmMono/Color
MV-CA050-20GN
Sensor: PHYTON5000 1" CMOSResolution: 2952 x 2048 pxFrame Rate: 22 fpsPixel size: 4.8 µm x 4.8 µmNear-Infrared
MV-CE050-30GM
Sensor: MT9P031 1/2.5" CMOSResolution: 2592 x 1944 pxFrame rate: 14 fpsPixel size: 2.2 µm x 2.2 µmMono
MV-CE050-31GM/C
Sensor: MT9P031 1/2.5" CMOSResolution: 2592 x 1944 pxFrame rate: 24 fpsPixel size: 2.2 µm x 2.2 µmMono/Color
MV-CA060-10GM/C
Sensor: IMX178 1/1.8" CMOSResolution: 3072 x 2048 pxFrame Rate: 17 fpsPixel size: 2.4 µm x 2.4 µmMono/Color
MV-CA060-11GM
Sensor: IMX178 1/1.8" CMOSResolution: 3072 x 2048 pxFrame Rate: 18 fps / 9 fpsPixel size: 2.4 µm x 2.4 µmMono
MV-CE100-30GM/C
Sensor: MT9J003 1/2.3" CMOSResolution: 3840 × 2748 pxFrame rate: 7 fpsPixel size: 1.67 µm x 1.67 µmMono/Color
MV-CE100-31GM
Sensor: MT9J003 1/2.3" CMOSResolution: 3840 × 2748 pxFrame rate: 11 fpsPixel size: 1.67 µm x 1.67 µmMono
MV-CE120-10GM/C
Sensor: IMX226 1/1.7" CMOSResolution: 4024 x 3036 pxFrame rate: 9.6 fpsPixel size: 1.85 µm x 1.85 µmMono/Color
MV-CE200-10GM/C
Sensor: IMX183 1" CMOSResolution: 5472 x 3648 pxFrame rate: 6 fpsPixel size: 2.4 µm x 2.4 µmMono/Color
