Hikvision MV-CH

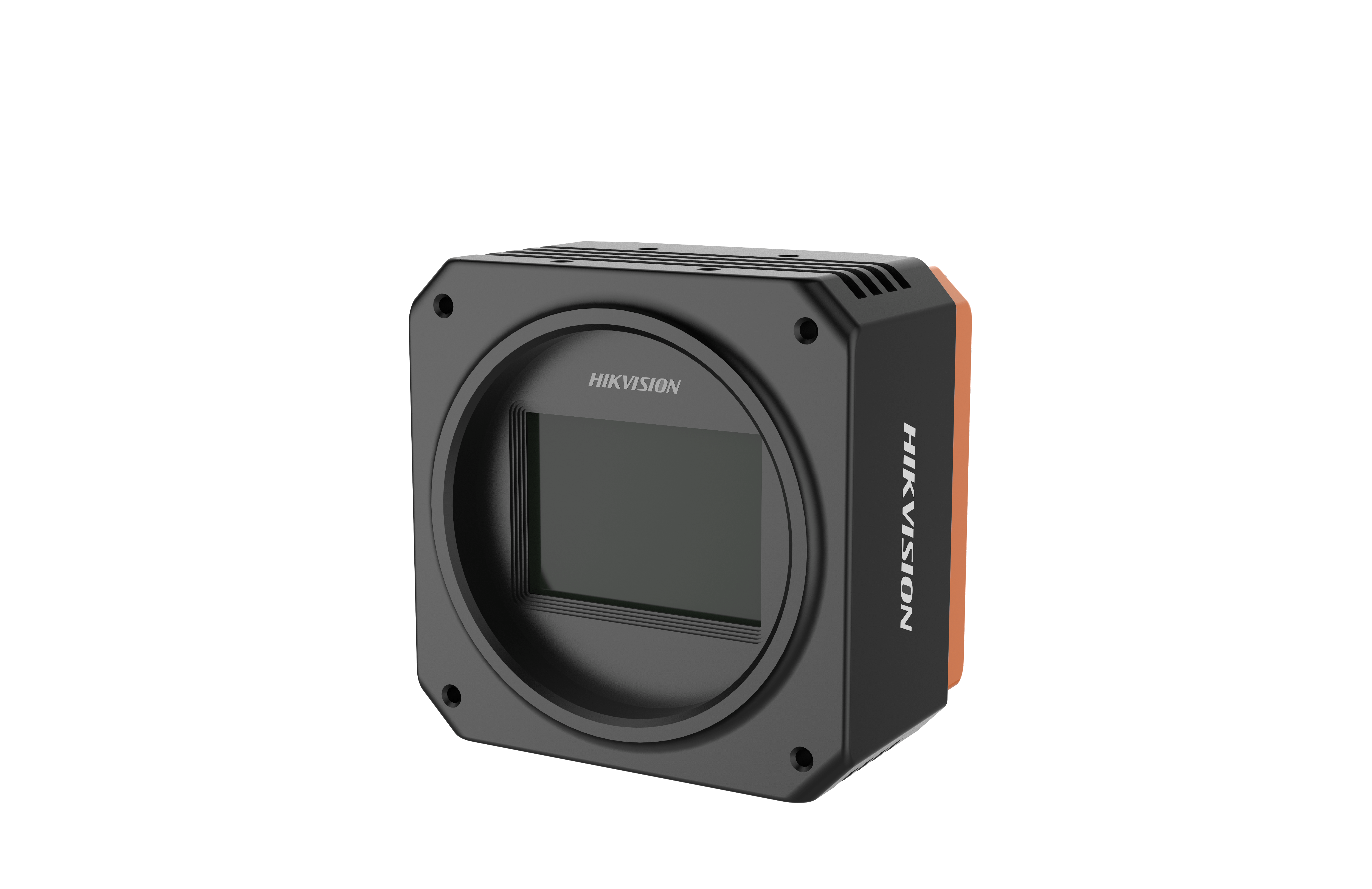

High resolution cameras

result results
MV-CH MV-CH
MV-CH
less
MV-CH050-10UM/C MV-CH050-10UM/C
Sensor: IMX250 2/3" CMOSResolution: 2432 x 2048 pxFrame rate: 140 fpsPixel size: 3.45 µm × 3.45 µmMono/Color (USB3.0)
Show details
MV-CH050-10CM/CC MV-CH050-10CM/CC
Sensor: IMX250 2/3" CMOSResolution: 2432 x 2048 pxFrame rate: 140 fpsPixel size: 3.45 µm × 3.45 µmMono/Color (CameraLink)
Show details
MV-CH080-60GM/C MV-CH080-60GM/C
Sensor: KAI08051 4/3" CCDResolution: 3296 × 2472 pxFrame rate(mono): 14fpsPixel size: 5.5µm × 5.5µmMono/Color (GigE)
Show details
MV-CH089-10UM/C MV-CH089-10UM/C
Sensor: IMX267 1" CMOSResolution: 4096 x 2160 pxFrame rate: 32 fpsPixel size: 3.45µm × 3.45µmMono/Color (USB3.0)
Show details
MV-CH089-10GM/C MV-CH089-10GM/C
Sensor: IMX267 1" CMOSResolution: 4096 x 2160 pxFrame rate: 13fpsPixel size: 3.45µm × 3.45µmMono/Color (GigE)
Show details
MV-CH120-10UM/C MV-CH120-10UM/C
Sensor: IMX304 1.1" CMOSResolution: 4096 x 3000 pxFrame rate: 23 fpsPixel size: 3.45µm × 3.45µmMono/Color (USB3.0)
Show details
MV-CH120-10GM/C MV-CH120-10GM/C
Sensor: IMX304 1.1" CMOSResolution: 4096 x 3000 pxFrame rate: 9.4 fpsPixel size: 3.45µm × 3.45µmMono/Color (GigE)
Show details
MV-CH120-10TM MV-CH120-10TM
Sensor: IMX253 1.1" CMOSResolution: 4096 x 3000 pxFrame rate: 68fpsPixel size: 3.45µm × 3.45µmMono/Color (10 GigE)
Show details
MV-CH250-20TM/TC MV-CH250-20TM/TC
Sensor: PHYTON25K 25MP CMOSResolution: 5120 x 5120 pxFrame rate: 40 fpsPixel size: 4.5 µm × 4.5 µmMono/Color (10 GigE)
Show details
MV-CH250-21GM/C MV-CH250-21GM/C
Sensor: PHYTON25K 25MP CMOSResolution: 5120 x 5120 pxFrame rate: 4.64 fpsPixel size: 4.5 µm × 4.5 µmMono/Color (GigE)
Show details
MV-CH250-21TM MV-CH250-21TM
Sensor: PHYTON25K 25MP CMOSResolution: 5120 x 5120 pxFrame rate: 40 fpsPixel size: 4.5 µm × 4.5 µmMono (10 GigE)
Show details
MV-CH250-90GM MV-CH250-90GM
Sensor: GMAX0505 1.1" 25MP CMOSResolution: 5120 x 5120 pxFrame rate: 4.5 fpsPixel size: 4.5 µm × 4.5 µmMono (GigE)
Show details
MV-CH290-60GM/C MV-CH290-60GM/C
Sensor: KAI29050 29 MP CCDResolution: 6576 × 4384 pxFrame rate: 4fpsPixel size: 5.5µm×5.5µmMono/Color (GigE)
Show details
MV-CH290-60CM MV-CH290-60CM
Sensor: KAI29050 29MP CCDResolution: 6576 × 4384 pxFrame rate: 4.5 fpsPixel size: 5.5µm×5.5µmMono (CamerLink)
Show details
MV-CH290-61GM MV-CH290-61GM
Sensor: KAI29050 29MP CCDResolution: 6576 × 4384 pxFrame rate: 4fpsPixel size: 5.5µm × 5.5µmMono (GigE)
Show details
MV-CH290-61CM MV-CH290-61CM
Sensor: KAI29050 29MP CCDResolution: 6576 × 4384 pxFrame rate: 4.5 fpsPixel size: 5.5µm×5.5µmMono (CamerLink)
Show details
MV-CH310-10GM-F-NF MV-CH310-10GM-F-NF
Sensor: IMX342 31MP CMOSResolution: 6464 x 4852 pxFrame rate: 3.9 fpsPixel size: 3.45µm×3.45µmMono (CoaXPress)
Show details
MV-CH310-10XM-F-NF MV-CH310-10XM-F-NF
Sensor: IMX342 31MP CMOSResolution: 6464 x 4852 pxFrame rate: ADC 8bit: 17.9; ADC 12bit: 12.1 fpsPixel size: 3.45µm×3.45µmMono (CoaXPress)
Show details
MV-CH430-61CM-F-NF MV-CH430-61CM-F-NF
Sensor: KAI43140 43MP CCDResolution: 8032 x 5360 pxFrame rate: 3.64 fpsPixel size: 4.5µm×4.5µmMono (CameraLink)
Show details
MV-CH430-90XM-F-NF MV-CH430-90XM-F-NF
Sensor: GMAX0806 43MP CMOSResolution: 7904 x 5432 pxFrame rate: 13 fps to 16.35 fpsPixel size: 2.8µm×2.8µmMono (CoaXPress)
Show details
MV-CH500-61CM-M85S-TF MV-CH500-61CM-M85S-TF
Sensor: KAI50140 50MP CCDResolution: 10440 x 4800 pxFrame rate: 4 fpsPixel size: 4.5µm×4.5µmMono (CameraLink)
Show details
MV-CH1510-10XM-M72-NF MV-CH1510-10XM-M72-NF
Sensor: IMX411, 151 MP, CNOSResolution: 14208 x 10640 pxFrame rate: 6.2 fpsPixel size: 3.76µm×3.76µmMono (CoaXPress)
Show details
MV-CH1510-10XM-M72-TF MV-CH1510-10XM-M72-TF
Sensor: IMX411, 151 MP, CNOSResolution: 14208 x 10640 pxFrame rate: 6.2 fpsPixel size: 3.76µm×3.76µmMono (CoaXPress)
Show details
MV-CH050-10UM/C
Sensor: IMX250 2/3" CMOSResolution: 2432 x 2048 pxFrame rate: 140 fpsPixel size: 3.45 µm × 3.45 µmMono/Color (USB3.0)
MV-CH050-10CM/CC
Sensor: IMX250 2/3" CMOSResolution: 2432 x 2048 pxFrame rate: 140 fpsPixel size: 3.45 µm × 3.45 µmMono/Color (CameraLink)
MV-CH080-60GM/C
Sensor: KAI08051 4/3" CCDResolution: 3296 × 2472 pxFrame rate(mono): 14fpsPixel size: 5.5µm × 5.5µmMono/Color (GigE)
MV-CH089-10UM/C
Sensor: IMX267 1" CMOSResolution: 4096 x 2160 pxFrame rate: 32 fpsPixel size: 3.45µm × 3.45µmMono/Color (USB3.0)
MV-CH089-10GM/C
Sensor: IMX267 1" CMOSResolution: 4096 x 2160 pxFrame rate: 13fpsPixel size: 3.45µm × 3.45µmMono/Color (GigE)
MV-CH120-10UM/C
Sensor: IMX304 1.1" CMOSResolution: 4096 x 3000 pxFrame rate: 23 fpsPixel size: 3.45µm × 3.45µmMono/Color (USB3.0)
MV-CH120-10GM/C
Sensor: IMX304 1.1" CMOSResolution: 4096 x 3000 pxFrame rate: 9.4 fpsPixel size: 3.45µm × 3.45µmMono/Color (GigE)
MV-CH120-10TM
Sensor: IMX253 1.1" CMOSResolution: 4096 x 3000 pxFrame rate: 68fpsPixel size: 3.45µm × 3.45µmMono/Color (10 GigE)
MV-CH250-20TM/TC
Sensor: PHYTON25K 25MP CMOSResolution: 5120 x 5120 pxFrame rate: 40 fpsPixel size: 4.5 µm × 4.5 µmMono/Color (10 GigE)
MV-CH250-21GM/C
Sensor: PHYTON25K 25MP CMOSResolution: 5120 x 5120 pxFrame rate: 4.64 fpsPixel size: 4.5 µm × 4.5 µmMono/Color (GigE)
MV-CH250-21TM
Sensor: PHYTON25K 25MP CMOSResolution: 5120 x 5120 pxFrame rate: 40 fpsPixel size: 4.5 µm × 4.5 µmMono (10 GigE)
MV-CH250-90GM
Sensor: GMAX0505 1.1" 25MP CMOSResolution: 5120 x 5120 pxFrame rate: 4.5 fpsPixel size: 4.5 µm × 4.5 µmMono (GigE)
MV-CH290-60GM/C
Sensor: KAI29050 29 MP CCDResolution: 6576 × 4384 pxFrame rate: 4fpsPixel size: 5.5µm×5.5µmMono/Color (GigE)
MV-CH290-60CM
Sensor: KAI29050 29MP CCDResolution: 6576 × 4384 pxFrame rate: 4.5 fpsPixel size: 5.5µm×5.5µmMono (CamerLink)
MV-CH290-61GM
Sensor: KAI29050 29MP CCDResolution: 6576 × 4384 pxFrame rate: 4fpsPixel size: 5.5µm × 5.5µmMono (GigE)
MV-CH290-61CM
Sensor: KAI29050 29MP CCDResolution: 6576 × 4384 pxFrame rate: 4.5 fpsPixel size: 5.5µm×5.5µmMono (CamerLink)
MV-CH310-10GM-F-NF
Sensor: IMX342 31MP CMOSResolution: 6464 x 4852 pxFrame rate: 3.9 fpsPixel size: 3.45µm×3.45µmMono (CoaXPress)
MV-CH310-10XM-F-NF
Sensor: IMX342 31MP CMOSResolution: 6464 x 4852 pxFrame rate: ADC 8bit: 17.9; ADC 12bit: 12.1 fpsPixel size: 3.45µm×3.45µmMono (CoaXPress)
MV-CH430-61CM-F-NF
Sensor: KAI43140 43MP CCDResolution: 8032 x 5360 pxFrame rate: 3.64 fpsPixel size: 4.5µm×4.5µmMono (CameraLink)
MV-CH430-90XM-F-NF
Sensor: GMAX0806 43MP CMOSResolution: 7904 x 5432 pxFrame rate: 13 fps to 16.35 fpsPixel size: 2.8µm×2.8µmMono (CoaXPress)
MV-CH500-61CM-M85S-TF
Sensor: KAI50140 50MP CCDResolution: 10440 x 4800 pxFrame rate: 4 fpsPixel size: 4.5µm×4.5µmMono (CameraLink)
MV-CH1510-10XM-M72-NF
Sensor: IMX411, 151 MP, CNOSResolution: 14208 x 10640 pxFrame rate: 6.2 fpsPixel size: 3.76µm×3.76µmMono (CoaXPress)
MV-CH1510-10XM-M72-TF
Sensor: IMX411, 151 MP, CNOSResolution: 14208 x 10640 pxFrame rate: 6.2 fpsPixel size: 3.76µm×3.76µmMono (CoaXPress)
