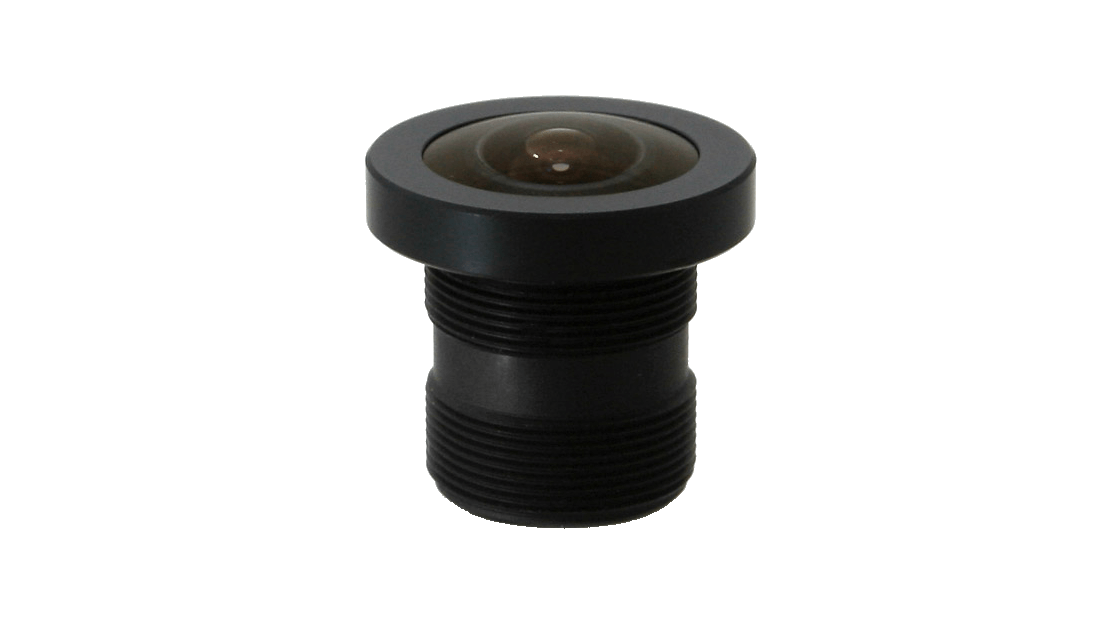

BK1820
Standard Board Lens
Fast Facts
- 1 Megapixel S-Mount lens
- for 1/4" sensors
- f = 1.8 mm, F2.0
Specifications
Mount:
S-Mount
Sensor:
1/4"
Focal Length:
1.79 mm
Opening:
2.0
MOD:
0.2 m
Back Focal Length:
3.65 mm
Angel of View (D):
175°
IR Cut:
Available with IR cut: BK1820C
Gewicht:
6 g
Iris:
fixed
Focus:
fixed
Type:
Standard
